Bộ điều khiển nhiệt độ THX9421R5013

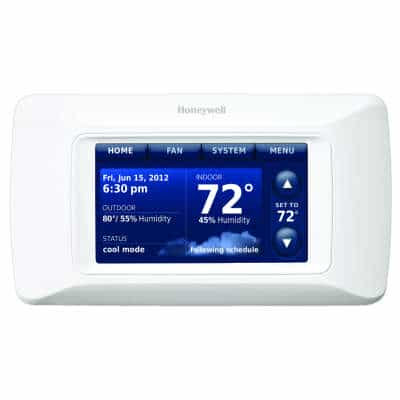

Honeywell THX9421R5013 Prestige® IAQ 2.0 HD high definition color touchscreen thermostat, RedLINK™ enabled
Bộ điều khiển nhiệt độ THX9421R5013
Thông số kỹ thuật bộ điều khiển nhiệt độ Honeywell THX9421R5013
đại lý honeywell | đại lý THX9421R5013
nhà phân phối honeywell | nhà phân phối THX9421R5013
• Control heating, cooling and IAQ equipment with only 2 wires at the thermostat. Heating, cooling and IAQ equipment wires to the Equipment Interface Module.
• Patented interview based programming and installer setup.
• RedLINK™ wireless communication.
• Increase profit per job by including RedLINK™ accessories that provide comfort and convenience. RedLINK™ accessories include the RedLINK™ Internet Gateway, Portable Comfort Control (PCC), Wireless Outdoor Sensor, Wireless Indoor Sensor, TrueSTEAM™ humidifier with Wireless Adapter and TrueZONE® zoning panel with Wireless Adapter.
• Configurable for residential and light commercial applications. Meets commercial code and is title 24 compliant.
• Light commercial – commercial language (occupied and unoccupied), schedule holidays and custom events, remote setback, economizer and time of day.
• Delta T Alerts and Diagnostics informs customers when their system is not operating as expected with instructions to contact the dealer. Provides a sense of security and greater comfort while generating repeat business.
• All Prestige® IAQ 2.0 systems come standard with a return and discharge air temperature sensor to measure Delta T.
• Alerts and User Interactions Log – Keeps a searchable history of alerts and setting changes to the thermostat to determine if there is a system malfunction or if the issue was caused by user error. Saves time in troubleshooting and points the technician in the right direction.
• Customizable Service Reminders allow dealers to remind their customers when its time to call for service, when their warranty is expiring and to provide customized alerts.
• USB port for transferring Installer Setup, Customizable Reminders, Custom Events and Holidays to multiple thermostats.
• USB port for adding the dealer’s full color business logo on the screen.
• 3 assignable outputs to control humidification, dehumidification, ventilation and a stage of heating or cooling.
• 2 assignable inputs can be used with wiredPrestige® IAQ 2.0 HD high definition color touchscreen thermostat, RedLINK™ enabled
| Màu sắc | Arctic White |
|---|
| Được sử dụng với | THM5421R1013 Equipment Interface Module and RedLINK accessories |
|---|
| Operating Temperature Range (C) | 0 C to 48.9 C |
|---|
| Ứng dụng | Up to 4 Heat/2 Cool Heat Pumps,Up to 3 Heat/2 Cool Conventional Systems |
|---|
| Operating Temperature Range (F) | 32 F to 120 F |
|---|
| Power Method | Hardwired |
|---|
| Kích thước (in.) | 3 15/16 in. High, 6 7/8 in. Wide, 1 1/2 in. Deep |
|---|
| Hazmat Information | UN 3091 Lithium metal batteries packed in/with equipment |
|---|
| Phạm vi độ ẩm hoạt động (% RH) | 5 to 90% RH, non-condensing |
|---|
| Bình luận | Tri-Lingual Display (selectable for English, French or Spanish) |
|---|
| Tổng quan | The Prestige® IAQ 2.0 thermostat is a 2 wire high definition color touch screen thermostat, 7 day programmable, configurable for residential and light commercial, up to 4 heat / 2 cool heat pump and up to 3 heat / 2 cool conventional, controls humidification, dehumidification and ventilation, provides Delta T Alerts and Diagnostics, works with the Equipment Interface Module and RedLINK™ accessories including the RedLINK™ Internet Gateway, Portable Comfort Control, Wireless Outdoor Sensor and Wireless Indoor Sensor. |
|---|
| Cài đặt phạm vi nhiệt độ (C) | Heat: 4.5 C to 32.0 C; Cool: 10 C to 37.0 C |
|---|
| Giai đoạn | See Equipment Interface Module |
|---|
| Kích thước (mm) | 100 mm. High, 175 mm. Wide, 38 mm. Deep |
|---|
| Supply Voltage | 18 to 30 Vac |
|---|
| Kết nối điện | Screw terminals |
|---|
| Cài đặt phạm vi nhiệt độ (F) | Heat: 40 F to 90 F; Cool 50 F to 99F |
|---|
| Chuyển đổi vị trí (System) | HEAT-OFF-COOL-AUTO-EM.HEAT |
|---|
| Electrical Ratings | 18 to 30 Vac |
|---|
| Tần số | 60 Hz,50 Hz |
|---|
| Chuyển đổi vị trí (Fan) | AUTO-ON-CIRC |
|---|
| Chỉ định thiết bị đầu cuối | R, C then RedLINK to Equipment Interface Module |
|---|
| Kích thước hiển thị | 8.06 sq in. |
|---|
| Chuyển đổi | Auto or Manual |
|---|
| Programmability | 7-Day Multiple Day Programming or Non-Programmable |
|---|
| Bao gồm | THX9421R5013 Prestige IAQ 2-Wire HD Thermostat |
|---|
| Humidification Setting Range | Cooling: 40 to 80% RH. Heating: 10 to 60% RH. |
|---|
| Dehumidification Setting Range | 40 to 80% RH. |
|---|
| External Sensors Available | N/A |
|---|
Product Family
| Model Number | Decription | Manufacturer | Avail. Qty | ||
|---|---|---|---|---|---|
| THX9421R5013 | Prestige® IAQ 2.0 HD high definition color touchscreen thermostat, RedLINK™ enabled | Honeywell, Inc. | Call for Pricing | 0 |
